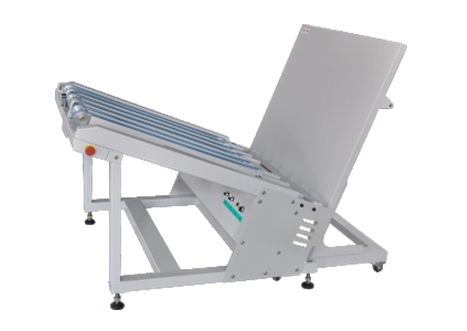

Plate stacker

Plate stacker

Speciality:

1.Program control with infrared sensing, no connection, be used with any brand developer.

2.Fast and slow automatic segmentation, stepless speed regulation.

3.Receive uninterrupted publication of processor.

4.With emergency safety switch, safe totally.

5.Large load, more than 100 plates.

Separate carts, convenient plates convey (horizontal).

Product details


LR860/1100/1250/1350/1450/1860/2080/ DLR 1650




SZ-LR1650


Select Accessories:

We can customized for any model and size.



Model

SZ-LR860

SZ-LR1100



SZ-LR1250

SZ-LR1350

SZ-LR1450



SZ-LR1650



SZ-DLR1650



SZ-LR1860

SZ-LR2080

Max. plate size(mm)

1100×860

1100×860

1500×1250

1630×1350

1250×1450

1650×1325

1650×1325

1860×1425

2080×1600

Min.   width (mm)

400

500

Speed (m/min)

0-3m/min

Overall   size(L×W×H)(mm)

1588×872×1430

1720×1260×1265

2028×1210×1635

2230×1250×1795

1600×1450×1420

2530×1700×1780

1680×1780×1660

2530×1900×1780

2680×2100×1780

POWER

1Φ220V/2A 50/60Hz
